DYNATECH

Sectional Warping Machine

Clartech Engineers Manufacturer and Supplier Across India

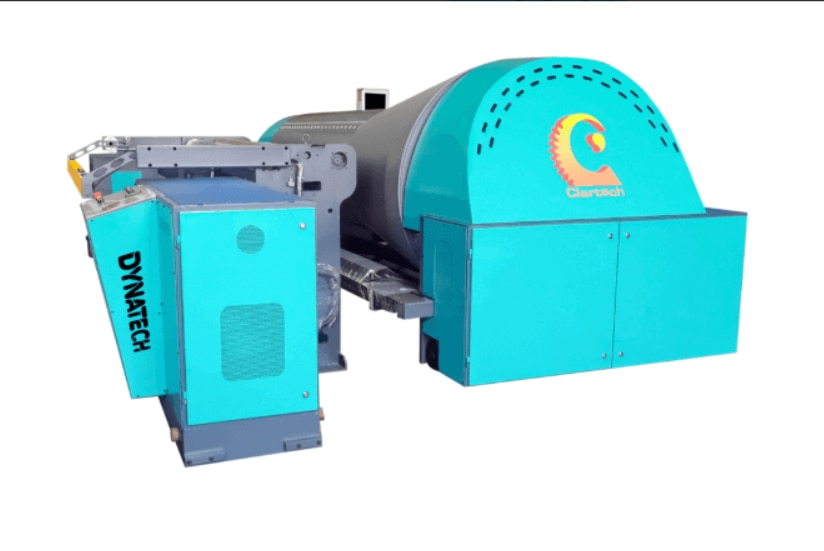

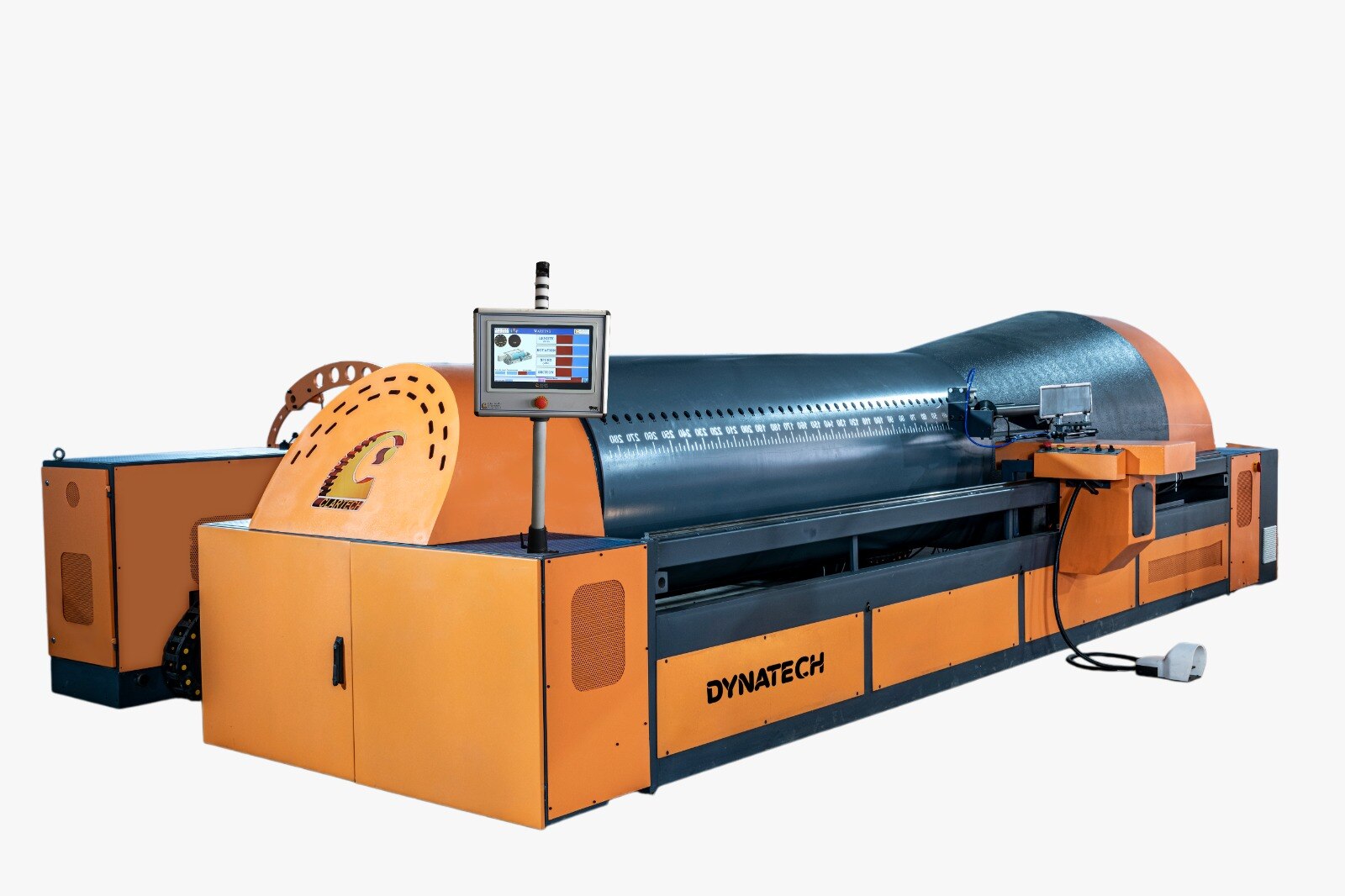

Clartech Engineers introduces the DYNATECH Sectional Warping Machine, a robust and intelligently engineered solution for high-precision warping of technical yarns. Designed for superior efficiency, this machine is ideal for Spun and Filament Yarns made from Polyester, Nylon, Carbon Fibre, Kevlar, Glass Fibre, and other technical fibres.

Key Specifications :

Model Name: DYNATECH

Working Width: 2200–4200 mm

Cone Degree: 7° / 8.5° / 10.5°

Drum Diameter: 1000 mm (3.14 m)

Waxing Device: Integrated with VFD

Extra Tension & Leasing Device: Yes

Beaming: Integral

Beaming Tension: Auto (up to 40,000 N)

Braking System: Air-cooled hydraulic disc brakes

Blower & Static Devices: Yes (Undercarriage & Leasing)

Structure: Extra Heavy-duty Frame

Max. Beam Flange Diameter: 1250 mm

Warping Motor: 11/15 kW Servo

Beaming Motor: Dual 22/30/35 kW Asynchronous Servo

Traverse Motor: 1.5/2.0 kW Servo

Undercarriage Motor: 1.0 kW Servo

Static Device Type: High Voltage

Warping Speed: Up to 500 MPM

Beaming Speed: Up to 60 MPM

Salient Features

Designed for both filament and spun yarns across a range of technical textile applications.

Rugged construction with a dynamically balanced drum for smooth operation and long service life.

Precision servo-controlled beaming and undercarriage for accurate warp formation.

Dual asynchronous motors and hydraulic doffing/donning system for consistent beaming tension.

Advanced control panel with high-resolution touchscreen and intelligent features such as lost-end memory and data interface.

Air-cooled hydraulic disc braking system for smooth, reliable stopping and emergency braking.

Manufacturing & Supply – PAN India Presence

Clartech Engineers manufactures and supplies the DYNATECH Sectional Warping Machine across all major textile cities in India, including:

Surat, Ahmedabad, Bhilwara, Bhiwandi, Ichalkaranji, Salem, Coimbatore, Erode, Hyderabad, Sonipat, Panipat, Ludhiana, Kolkata, Lucknow, Bengaluru, Kolhapur, Belagavi, Solapur, Varanasi, Patna, Mumbai, Karur, Chanderi, Chennai, Kanpur, Agra, Indore, Gwalior, Kota, Jaipur, Guwahati, and more.

Choose the Sectional Warping Machine from Clartech Engineers – trusted for accuracy, durability, and performance in demanding textile environments.
